🤖 LangGraph Multi-Agent Swarm

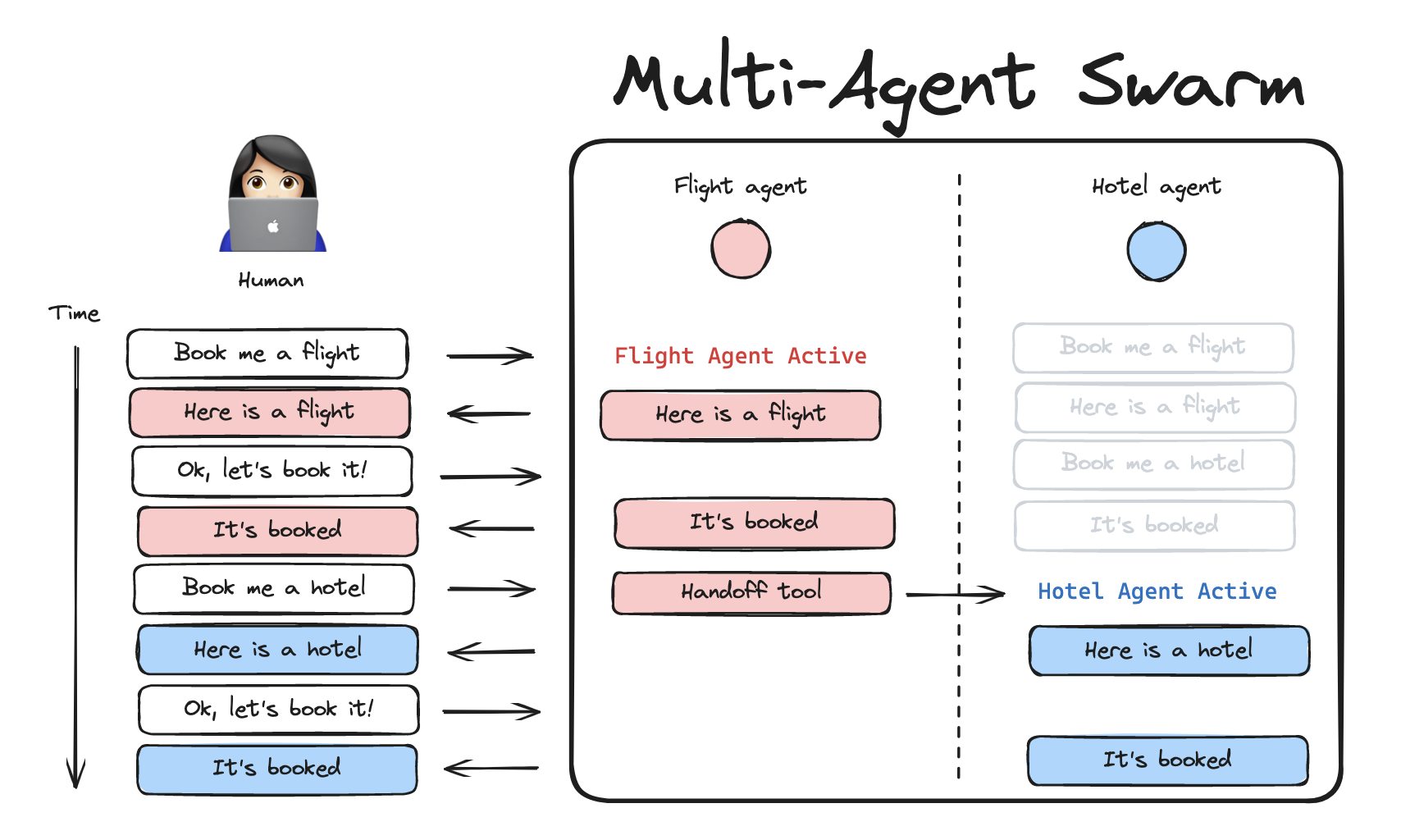

A JavaScript library for creating swarm-style multi-agent systems using LangGraph. A swarm is a type of multi-agent architecture where agents dynamically hand off control to one another based on their specializations. The system remembers which agent was last active, ensuring that on subsequent interactions, the conversation resumes with that agent.

Features

• 🤖 Multi-agent collaboration - Enable specialized agents to work together and hand off context to each other
• 🛠️ Customizable handoff tools - Built-in tools for communication between agents

This library is built on top of LangGraph, a powerful framework for building agent applications, and comes with out-of-box support for streaming, short-term and long-term memory and human-in-the-loop

Installation

npm install @langchain/langgraph-swarm @langchain/langgraph @langchain/core
Copy

Quickstart

npm install @langchain/langgraph-swarm @langchain/langgraph @langchain/core @langchain/openai

export OPENAI_API_KEY=<your_api_key>
Copy

import { z } from "zod";
import { ChatOpenAI } from "@langchain/openai";
import { tool, createAgent } from "langchain";
import { MemorySaver } from "@langchain/langgraph";
import { createSwarm, createHandoffTool } from "@langchain/langgraph-swarm";

const model = new ChatOpenAI({ modelName: "gpt-4o" });

// Create specialized tools
const add = tool(
  async (args) => args.a + args.b,
  {
    name: "add",
    description: "Add two numbers.",
    schema: z.object({
      a: z.number(),
      b: z.number()
    })
  }
);

// Create agents with handoff tools
const alice = createAgent({
  llm: model,
  tools: [add, createHandoffTool({ agentName: "Bob" })],
  name: "Alice",
  prompt: "You are Alice, an addition expert."
});

const bob = createAgent({
  llm: model,
  tools: [createHandoffTool({
    agentName: "Alice",
    description: "Transfer to Alice, she can help with math"
  })],
  name: "Bob",
  prompt: "You are Bob, you speak like a pirate."
});

// Create swarm workflow
const checkpointer = new MemorySaver();
const workflow = createSwarm({
  agents: [alice, bob],
  defaultActiveAgent: "Alice"
});

export const app = workflow.compile({
  checkpointer
});

const config = { configurable: { thread_id: "1" } };
const turn1 = await app.invoke(
  { messages: [{ role: "user", content: "i'd like to speak to Bob" }] },
  config
);
console.log(turn1);

const turn2 = await app.invoke(
  { messages: [{ role: "user", content: "what's 5 + 7?" }] },
  config
);
console.log(turn2);
Copy

Memory

You can add short-term and long-term memory to your swarm multi-agent system. Since createSwarm() returns an instance of StateGraph that needs to be compiled before use, you can directly pass a checkpointer or a store instance to the .compile() method:

import { MemorySaver, InMemoryStore } from "@langchain/langgraph";

// short-term memory
const checkpointer = new MemorySaver()
// long-term memory
const store = new InMemoryStore()

alice = ...
bob = ...

const workflow = createSwarm({
  agents: [alice, bob],
  defaultActiveAgent: "Alice",
})

// Compile with checkpointer/store
const app = workflow.compile({
  checkpointer,
  store
})
Copy

How to customize

You can customize multi-agent swarm by changing either the handoff tools implementation or the agent implementation.

Customizing handoff tools

By default, the agents in the swarm are assumed to use handoff tools created with the prebuilt createHandoffTool. You can also create your own, custom handoff tools. Here are some ideas on how you can modify the default implementation:

• change tool name and/or description
• add tool call arguments for the LLM to populate, for example a task description for the next agent
• change what data is passed to the next agent as part of the handoff: by default create_handoff_tool passes full message history (all of the messages generated in the swarm up to this point), as well as the contents of Command.update to the next agent

Here is an example of what a custom handoff tool might look like:

import { z } from "zod";
import { BaseMessage, ToolMessage } from "@langchain/core/messages";
import { tool } from "@langchain/core/tools";
import { Command, getCurrentTaskInput } from "@langchain/langgraph";

const createCustomHandoffTool = ({
  agentName,
  toolName,
  toolDescription,
}: {
  agentName: string;
  toolName: string;
  toolDescription: string;
}) => {

  const handoffTool = tool(
    async (args, config) => {
      const toolMessage = new ToolMessage({
        content: `Successfully transferred to ${agentName}`,
        name: toolName,
        tool_call_id: config.toolCall.id,
      });

      // you can use a different messages state key here, if your agent uses a different schema
      // e.g., "alice_messages" instead of "messages"
      // see this how-to guide for more details:
      // https://langchain-ai.github.io/langgraphjs/how-tos/pass-run-time-values-to-tools/
      const { messages } = (getCurrentTaskInput() as { messages: BaseMessage[] });
      const lastAgentMessage = messages[messages.length - 1];
      return new Command({
        goto: agentName,
        graph: Command.PARENT,
        // NOTE: this is a state update that will be applied to the swarm multi-agent graph (i.e., the PARENT graph)
        update: {
          messages: [lastAgentMessage, toolMessage],
          activeAgent: agentName,
          // optionally pass the task description to the next agent
          taskDescription: args.taskDescription,
        },
      });
    },
    {
      name: toolName,
      schema: z.object({
        // you can add additional tool call arguments for the LLM to populate
        // for example, you can ask the LLM to populate a task description for the next agent
        taskDescription: z.string().describe("Detailed description of what the next agent should do, including all of the relevant context")
      }),
      description: toolDescription,
    }
  );

  return handoffTool;
}
Copy

Customizing agent implementation

By default, individual agents are expected to communicate over a single messages key that is shared by all agents and the overall multi-agent swarm graph. This means that all of the messages from all of the agents will be combined into a single, shared list of messages. This might not be desirable if you don't want to expose an agent's internal history of messages. To change this, you can customize the agent by taking the following steps:

1. use custom state schema with a different key for messages, for example alice_messages
2. write a wrapper that converts the parent graph state to the child agent state and back (see this how-to guide)

import { BaseMessage } from "@langchain/core/messages";
import { Annotation, StateGraph, messagesStateReducer } from "@langchain/langgraph";

export const AliceStateAnnotation = Annotation.Root({
  alice_messages: Annotation<BaseMessage[]>({
    reducer: messagesStateReducer,
    default: () => [],
  }),
});
import { SwarmState } from "@langchain/langgraph-swarm";

// see this guide to learn how you can implement a custom tool-calling agent
// https://langchain-ai.github.io/langgraphjs/how-tos/react-agent-from-scratch/
const alice = (
    new StateGraph(AliceStateAnnotation)
    .addNode("model", ...)
    .addNode("tools", ...)
    .addEdge(...)
    ...
    .compile()
)

// wrapper calling the agent
const callAlice = async (state: typeof SwarmState.State) => {
    // you can put any input transformation from parent state -> agent state
    // for example, you can invoke "alice" with "task_description" populated by the LLM
    const response = await alice.invoke({"alice_messages": state["messages"]})
    // you can put any output transformation from agent state -> parent state
    return { "messages": response.alice_messages }
}

const callBob = async (state: typeof SwarmState.State) => {
    ...
}
Copy

Then, you can create the swarm manually in the following way:

import { addActiveAgentRouter } from "@langchain/langgraph-swarm";

let workflow = (
    new StateGraph(SwarmState)
    .addNode("Alice", callAlice, { ends: ["Bob"] })
    .addNode("Bob", callBob, { ends: ["Alice"] })
)
// this is the router that enables us to keep track of the last active agent
workflow = addActiveAgentRouter(workflow, {
    routeTo: ["Alice", "Bob"],
    defaultActiveAgent: "Alice",
})

// compile the workflow
const app = workflow.compile()
Copy
